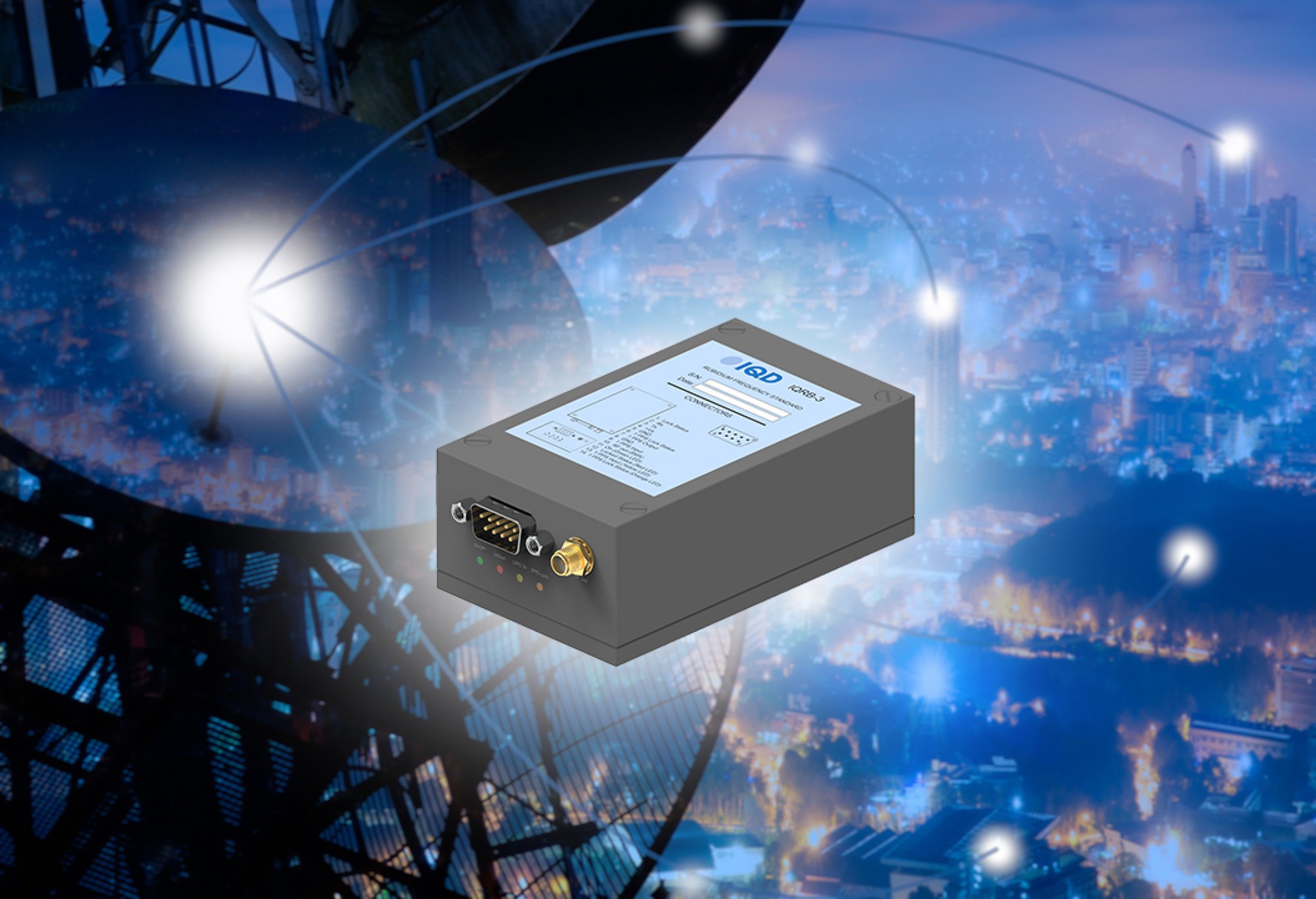

Rubidium oscillators have the reputation as the most accurate time standard in the industrial electronics arena. As a fundamental device, it is a crystal oscillator with a reference to an atomic clock. Two parts of a rubidium oscillator are taken into consideration when studied about atomic time standards. The first part refers to the top-notch quality quartz crystal-based, and oven-controlled oscillator (OCXO) that is responsible for the output signal. The second part is a physics package that offers the precise timing to control the frequency of the oven-controlled oscillator.
Designed for accurate optimal time stamps
A rubidium oscillator is designed in a way that it can cater to the highest degree of stability when used in industrial electronics applications. This assures a better and more efficient hold-over period when there is an unavailability of any input reference. Furthermore, the more efficient and greater hold-over period also offers optimal and accurate timestamps. This is also one of the reasons why 10 MHz output is maintained for a longer period, especially when the oscillator fails to keep up with the time synchronization.
The working mechanism of a rubidium oscillator
The second part of a rubidium oscillator that features the physics package is the fundamental concept behind the atomic frequency standards of rubidium oscillators. The physics-package section consists of a chamber filled with rubidium gas. Inside the chamber, light is made to radiate through the gas, which is further analyzed. Moreover, the gas reaches a specific phase via microwave energy at the changing frequency of rubidium gas. This helps the energy of the gas to pass from one level to the other.
When there is a transition of energy, a depression in the level of light is detected, which is assessed and analyzed. The detection is all about measuring the oscillation in the gas energy levels. The physics package In a rubidium oscillator functions by producing an error signal that is distinct in magnitude. Moreover, there is also detection of the difference in frequency between the atomic resonance and the applied microwave electrical innervation. The error signal takes place because of the frequency applied to the microwave electrical innervation. This is responsible for varying light transmission via a resonance cell.
Why use rubidium oscillators?
A rubidium oscillator has several benefits over atomic devices used in the landscape of industrial electronics. Some of the prime reasons for using a rubidium clock are:
- Costs cheaper than other atomic clocks like cesium clocks
- Rubidium clocks are smaller in size, thereby ensuring more portability
- Better short-term stability is offered along with accuracy in frequency
- Better signal unity
- Efficient co-channel involvement
It has been studied that a rubidium oscillator device is better at handling phase noises that can cause irregular movements than standard oscillators. Furthermore, their low aging rate of IE-9 over a 10 years duration for less than 1Hz drift for a regular 840 MHz UHF transmitter device is key to optimal performance.
Applications of rubidium oscillator
Atomic clocks
In an atomic clock, a glass cell of rubidium gas is used, making it a compact and precise rubidium device. The rubidium gas alters the light absorption at an optimal frequency midst of the right surrounding microwave frequency.
GPS navigator
The rubidium oscillator utilizes hyperfine alteration in the microwave field and functions as a secondary standard. Because of their compact size, excellent frequency stability, and cost-effectiveness, they are perfect for commercial applications, like GPS or Global Positioning System.
Telecommunication industry
The top-notch performance rubidium oscillator is designed to cater to the functions of a wide array of telecommunications applications. Apart from wireless base stations, RF test equipment applications can render high-performance because of the presence of rubidium oscillators.
Conclusion
Several industries realize the importance of embedding rubidium oscillators in applications, especially related to the communication sector, testing and measuring market, defense, and so on. The presence of the rubidium oscillator facilitates an updated and the latest digital electronics infrastructure and offers an optimal stable frequency. This also helps to cater to the high demanding performances of the industrial electronics sector. Thanks to their excellent short-term stability, low-temperature coefficients, and accurate frequency make rubidium oscillators the best for syncing industrial applications, abiding by low-aging rates. Hence, they can be used as amazing time standards.
